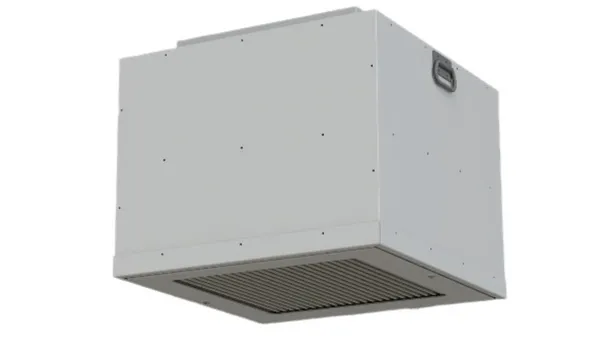

Compact HEPA Filter Unit - Ceiling Mounted - 23"Lx23"Wx20"H, - 900-1100 cfm - AX-AIR-FIT-100
This is compact fan filter, ceiling mount air purification system designed for use in cleanrooms, pharmaceutical manufacturing facilities, laboratories, and pharmacies. The unit is equipped with a HEPA filter which has an efficiency rating of 99.99% @ 0.3 µm delivering high volumes of HEPA filtered air.
PORTABLE AIR PURIFIER FEATURES
• Small Footprint
• High Airflow Capacity
• Easy Filter Replacement Design
• Negative Pressure Configuration Available
• Long Filter Life
• Low Operating Cost
• Low Maintenance
• Clean Air!
TECHNICAL DATA
Air Flow 900-1100 cfm
Motor 1.5 hp
Voltage (amps) 230/3/60 (2.7) - 460/3/60 (1.6)
Length 23"
Width 23"
Height 20"
Weight 90 lbs.
Sound 67 dB(A)
Construction 16 & 22 Gauge Powder Stainless Steel
Controls Variable frequency drive sold separately
Fan Backward curved centrifugal fan, 900-1100 cfm of delivered airflow.
Filters Second stage HEPA filter efficiency 99.99% @ 0.3 µm, first stage pre-filter for large particles
Product Code: AX-AIR-FIT-1100 Compact HEPA Filter Unit, Ceiling Mounted, 900-1100 CFM, 23"L x 23"W x 20"H
For more options, visit our main Cleanroom HEPA Filter section, our Environmental Monitoring System section, or our main section for Cleanroom Equipment.
ORDER CLEANROOM FILTERS
To order the cleanroom filters, click tab above, call customer service at 303-752-0076 or email
Shipping Instructions: The cleanroom filters ship via UPS or FedEx. The cleanroom filter ships collect or prepay and add to the invoice. If shipping collect, add your freight account number in the “Comments Box” when checking out. Customer is responsible for the freight charge.
Check out our motorized shoe cleaners (5 models to choose from, with internal vacuums and external vacuums).
031025CW
AirCompact HEPA Filter Unit, Ceiling Mounted, 900-1100 CFM, 23"Lx 23"Wx 20"H, AX-AIR-FIT-1000
