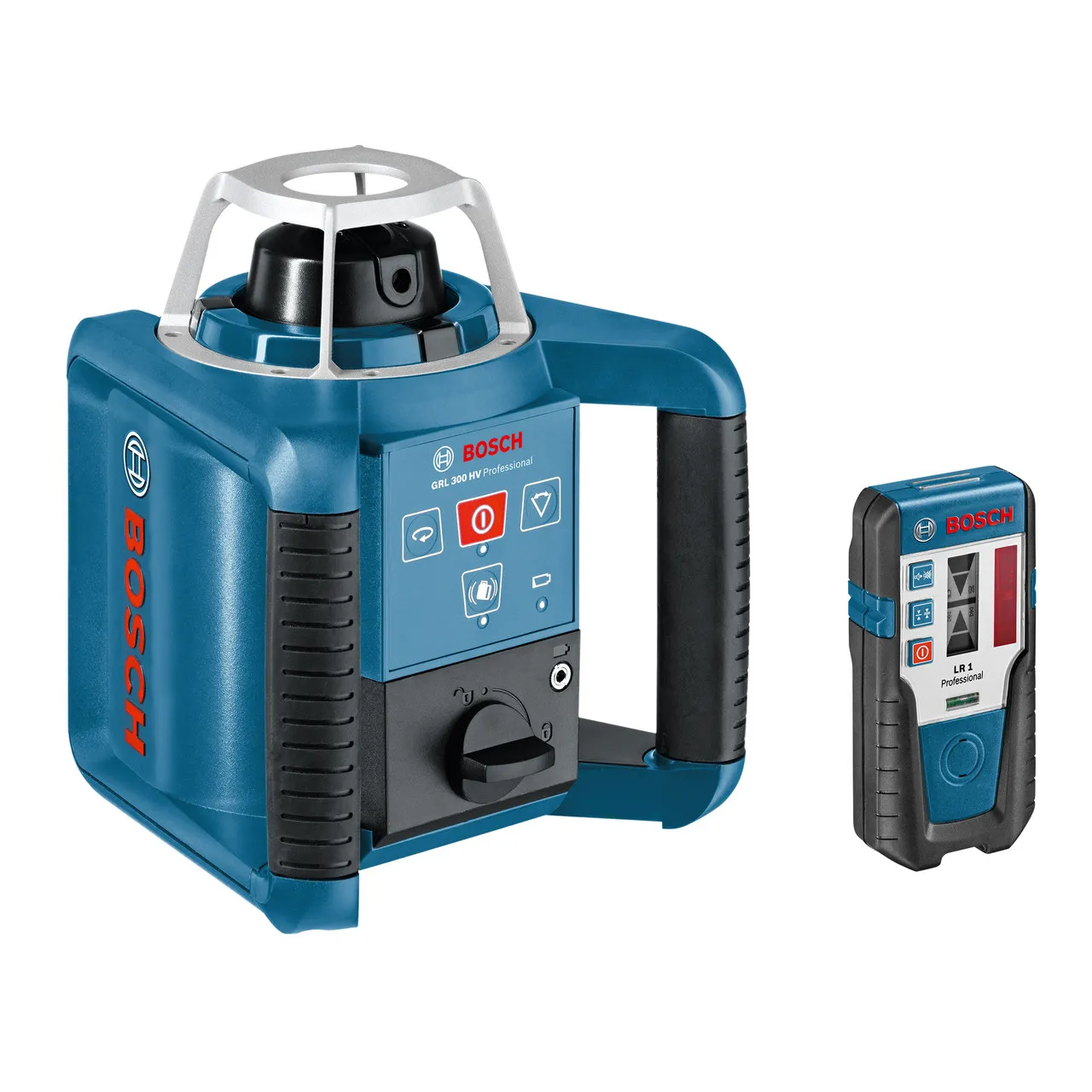

Bosch 0 615 994 03Y Rotation Laser + LR1 Receiver + RC1 Remote Control + GR240 Cut & Fill Rod + BT 300 HD Tripod

The Bosch 061599403Y consists of the GRL 300 HV rotation laser, LR1 laser receiver, RC1 remote control, GR240 cut and fill rod and the BT 300 HD building tripod. This kit is extremely easy-to-operate and perfect for outdoor use thanks to the aluminium construction of the rod and tripod which ensures maximum durability. You can expect accurate, precise readings with a range of up to 300 m when used in conjunction with the LR 1 Professional receiver.

GRL 300 HV Features:

• Horizontal and vertical self-levelling red rotation laser
• Extremely easy to operate thanks to one button per function and self-explanatory display
• Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
• The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks and vibrations

LR1 Features:

• Handy receiver for indoor and outdoor use for ranges of up to 200 m in combination with GRL 400 H
• Visual and audible alignment of the laser beam plane
• IP65 dust and splash protection
• Top-mounted magnets for better fixing and magnets for ceiling applications
• Two measuring accuracy settings
• Three levels of speaker volume
• Universal bracket for mounting on measuring rods
• Robust rubber-coated housing
• Automatic shutdown after 5–8 minutes to preserve battery life

RC1 Remote Control Features:

• Handy remote control with a range of 30 m
• For all functions including alignment of the laser line of the rotation laser in vertical mode
• Control the laser without the need to touch, or potentially move it

GR240 Cut & Fill Rod Features:

• For all measurements of floor heights
• Robust, high-quality aluminium profile
• Extendible up to 2.4 m
• For use even under extreme conditions

BT 300 HD Building Tripod Features:

• Robust aluminium construction with crank pull-out and quick lock
• High resistance to environmental influences
• 5/8" thread adapter

Comes with:

• 1 battery pack
• Carrying case
• Charger

Specification:

GRL 300 HV:

• Laser diode: 635 nm, < 5 mW
• Operating temperature: -10 – 50 °C
• Storage temperature: -20 – 70 °C
• Laser class: 3R
• Working range: 60 m
• Working range with receiver: 300 m (Diameter)
• Working range without receiver: 60 m (Diameter)
• Accuracy: ± 0.1 mm/m
• Self-levelling range: ± 5° (8%)
• Levelling time: 15 s
• Dust and splash protection: IP 54
• Rotation speed: 150, 300, 600 rpm
• Power supply: 2 x 1.2 V HR20 (D) (9 Ah) , 2 x 1.5 V LR20 (D)
• Operating time (max): Rechargeable batteries (NiMH) 30 h
• Tripod thread: 5/8"
• Weight, approx: 1.8 kg
• Colour of laser line: red

LR 1:

• Range of: 0 – 200 m
• Power supply: 1 x 9 V 6LR61 Block
• Dust and splash protection: IP 65
• Measuring accuracy (fine/rough): ± 1 mm/± 3 mm

RC1:

• Range of: 30 m
• Power supply: 1 x 1.5 V LR6 (AA)
• Weight, approx: 70 g

GR240:

• Length: 2.4 m
• Sections: 2
• Units of measurement: m/cm
• Material: Aluminium

BT 300 HD:

• Work height: 122 – 295 cm
• Weight, approx: 7.2 kg
• Tripod thread: 5/8"

SKU: BOS-GRL300HVBT300SET061599403Y
